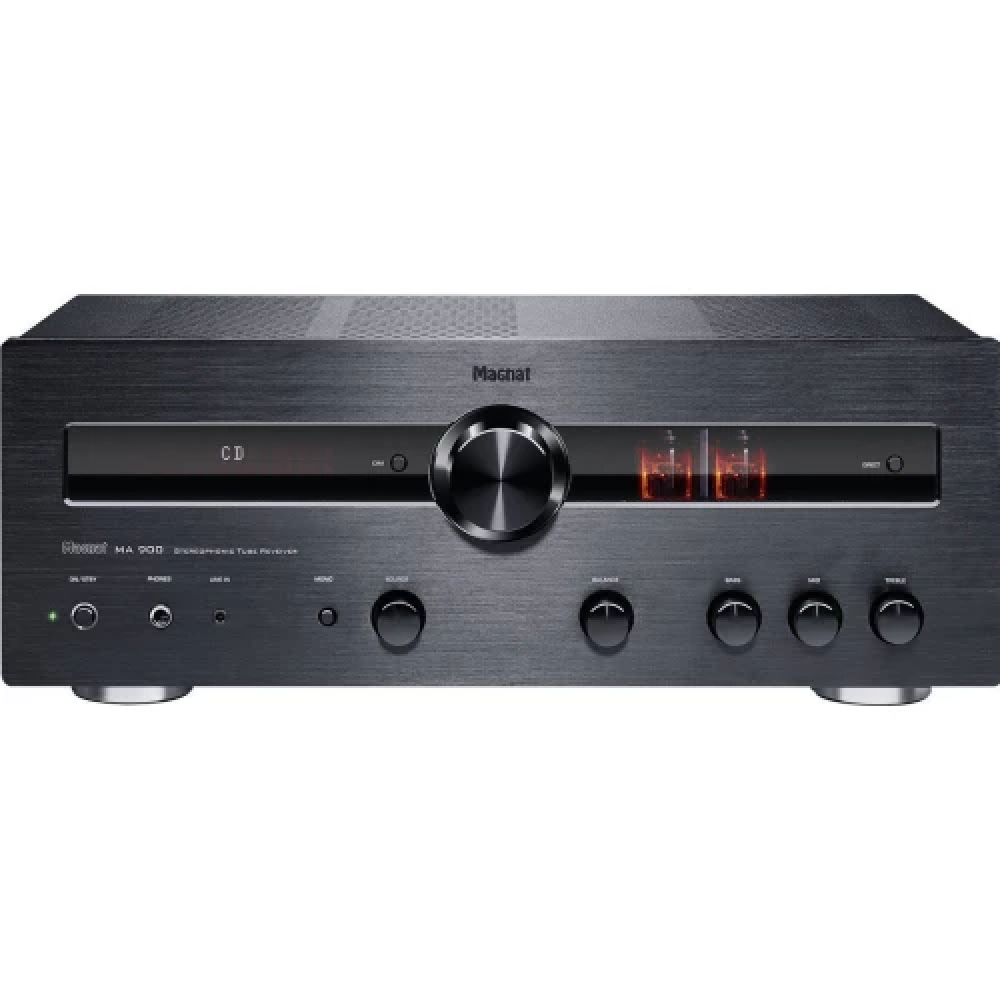

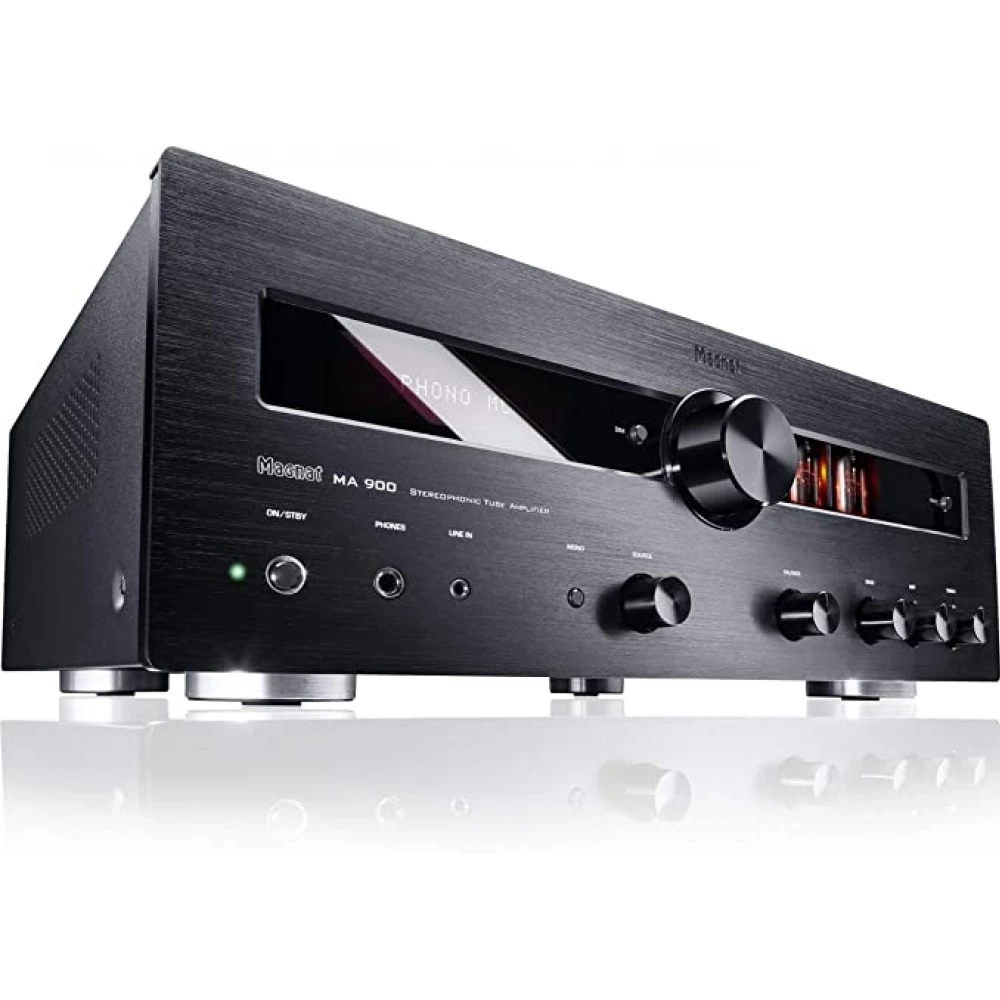

Magnat Hybrid Amplifier MA 900 Black latest version

Magnat Hybrid Amplifier MA 900 Black

Magnat MA 900 is a hybrid amplifier with a MM/MS phono corrector. The German company Magnat has introduced a new model of the hybrid integrated amplifier MA 900, characterized by the presence of a built-in universal corrector and a DAC unit.

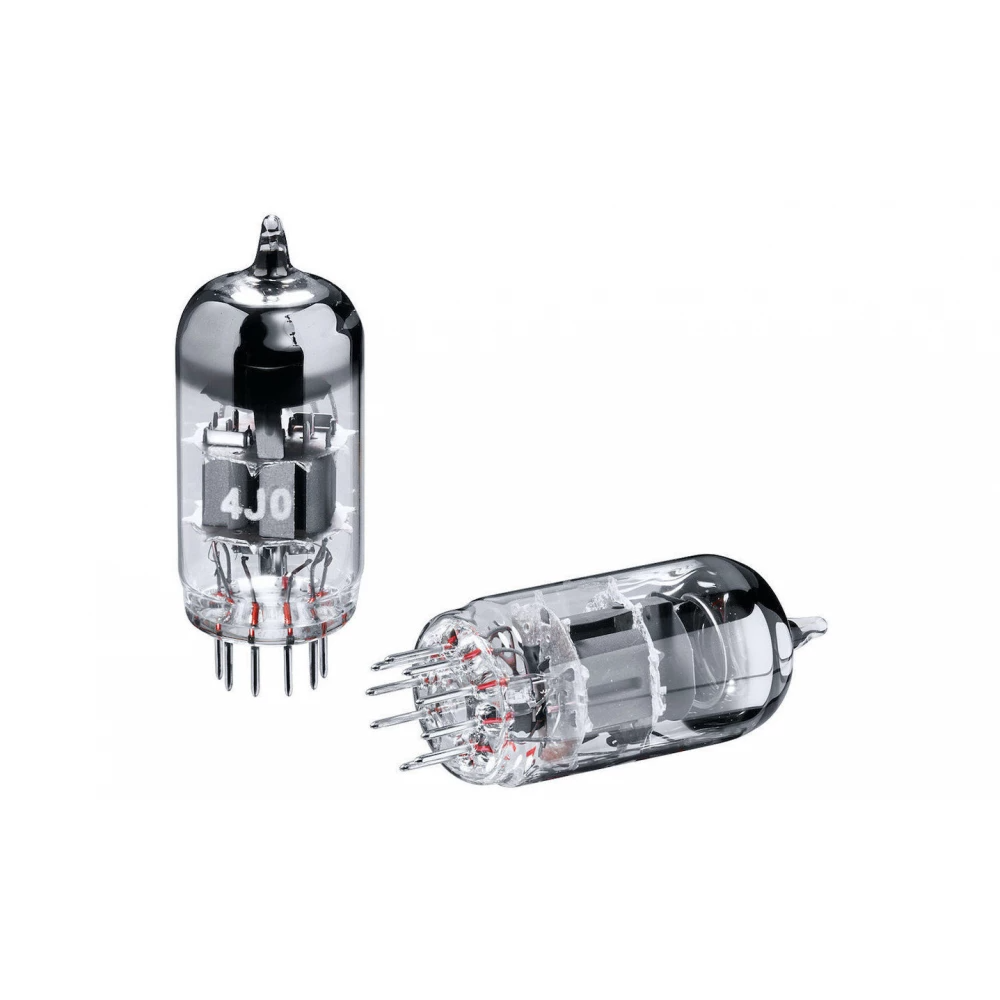

The preamp section in the model is built on ECC 81 dual triodes, and the manufacturer emphasizes that the lamps are not only paired, but also undergo a preheating procedure before being installed in the circuit. The output stage is transistor–type and can develop a long-term power of 200 watts per channel for a 4 ohm load, while the peak power reaches 320 watts! A reliably shielded toroidal transformer is installed in the power supply unit.

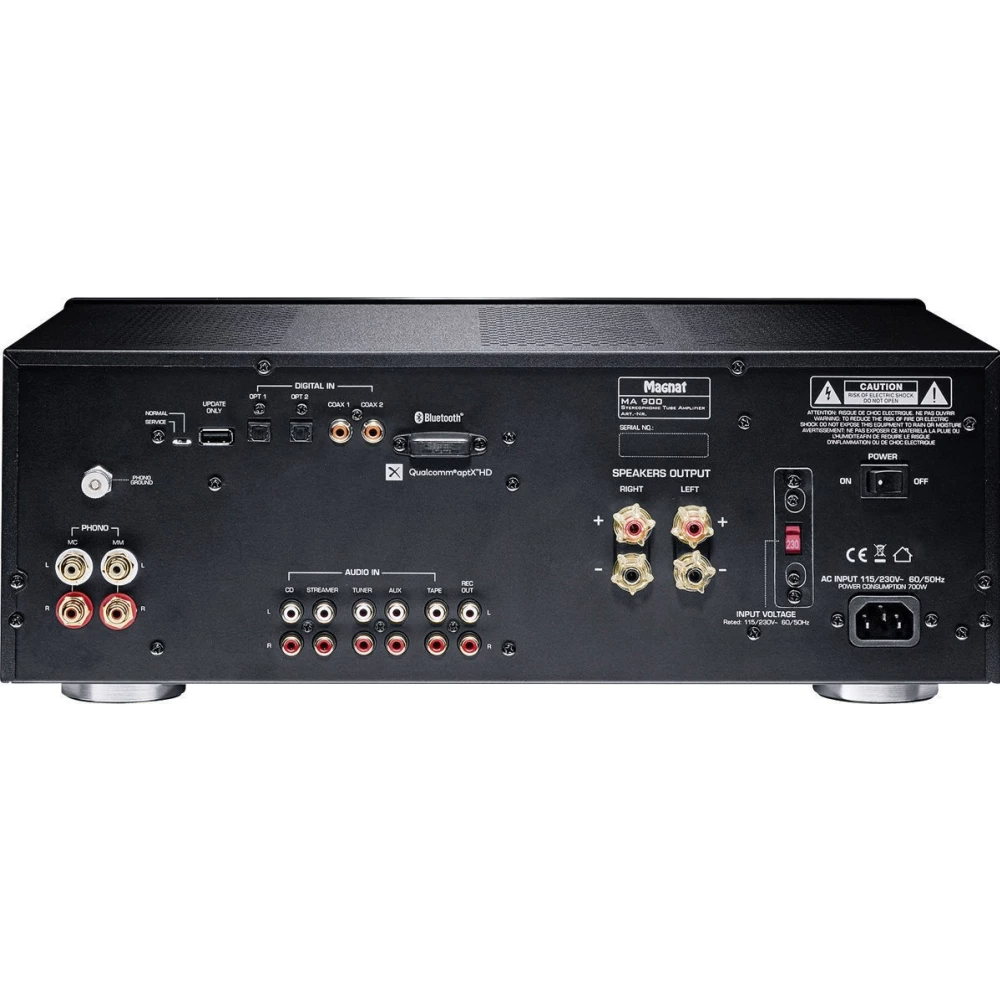

There are five pairs of RCA line inputs for connecting analog sources, and there is a 3.5mm input on the front panel, as well as a 6.3mm headphone output.

The digital-to-analog converter unit is made on Cirrus Logic chips, the signal can be sent to it via two coaxial and two optical inputs, the maximum resolution is 24 bits/ 192 kHz. There is also a Bluetooth 5.0 module with support for the aptX codec. The built-in phono corrector can work with heads with a movable magnet (5 mV/47 kOhm) and with a movable coil (0.5 mV/470 ohms).

The interesting Source Gain feature allows you to adjust the gain within +/-6 dB separately for each input.

Specifications

Basic

Country (Main Office)

Germany

Type

Integrated Amplifier

DAC bitrate

24 bit

Color

Black

Signal-to-noise ratio, dB

105

Features

Number of USB ports

2

Functions

Control by Apple/Android

No

Inputs

Mini-jack 3.5 mm inputs

1

RCA line inputs

7

Coaxial audio inputs

2

Outputs

RCA line outputs

Stereo

Optical audio outputs

2

Power

Power consumption, W

700

Wireless connection

Bluetooth

Yes

Wi-Fi

No

Dimensions

Weight, kg

11.7

Height, mm

162

Depth, mm

316

Width, mm
