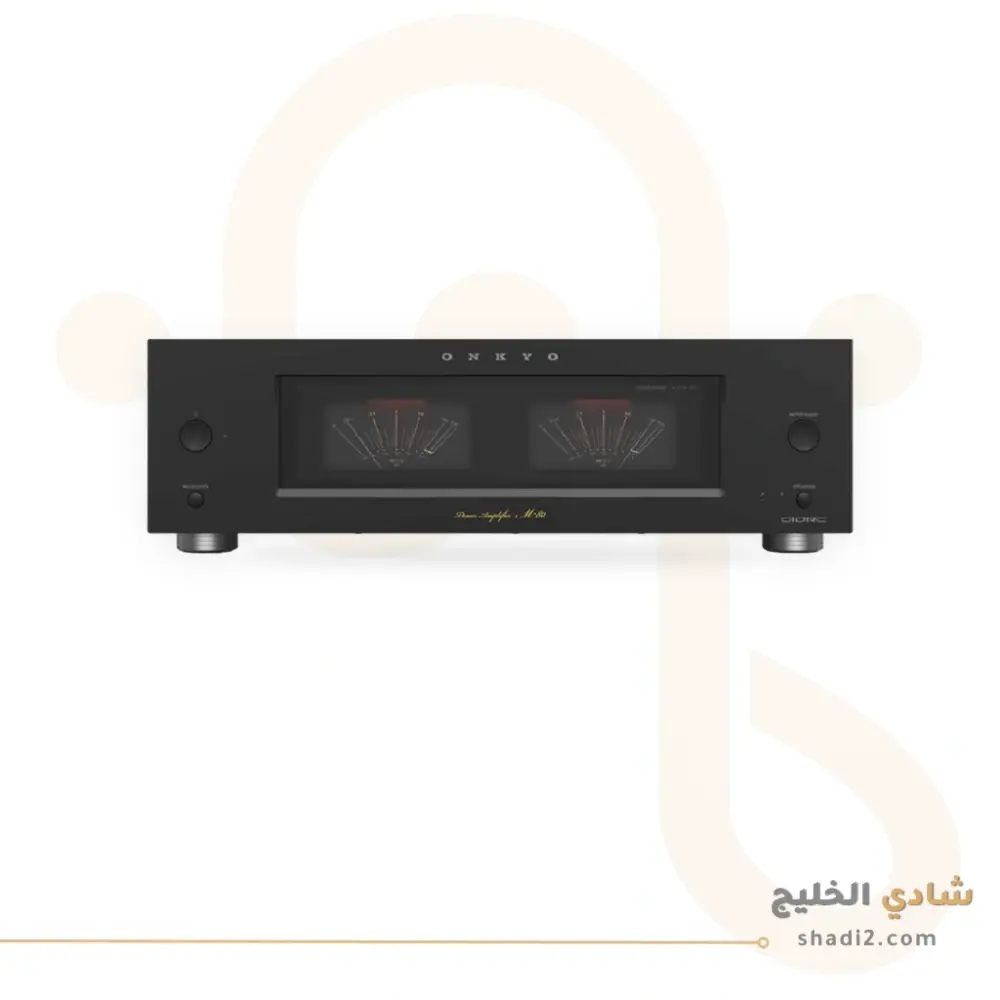

Onkyo Icon M-80 Stereo power amplifier

SUPERIOR SOUND STARTS WITH ONKYO

Sophisticated circuitry, elevated design choices, and next-generation tech are weaved into every millimeter of Onkyo’s new Icon Series. Our dedicated engineers believe everyone deserves an exceptional listening experience with all the nuance, detail, and emotion that the artists or players intended. The content played through any of our Icon Series products isn’t just heard – it’s felt

FROM ONKYO ACADEMY: THE BENEFITS OF A POWER AMPLIFIER

A power amplifier receives the signal from your pre-amp and literally powers it into your speakers. Think of your pre-amp as a brain, and your power amplifier as the muscle. Separating your amplifiers into pre- and power gives you ultimate flexibility in audio playback. Since they are not affected by each other’s circuits, they can provide high-resolution sound quality through even cleaner signal transmission. Audiophiles are well-known to prefer specific power amps and the way they impact sound quality and

coloration. The M-80 is a power amplifier that reproduces the full range of artists or players’ intentions in their music and drives you into a world of emotion.

OUTPUT POWER - 130w ( 8ohm, 20-20kHz, THD 0.07%, 2ch driven)

200w ( 4ohm, 1kHz, THD 0.7%, 2ch driven )

AMPLIFIER CHANNEL - 2 Ch

AMPLIFIER TYPE - Class AB

FREQUENCY RESPONSE - 5Hz~100kHz(+1/-3dB)

SPEAKER IMPEDANCE - 4-16Ω

ANALOG AUDIO INPUT - RCA(Unbalanced) x 1pair ; XLR(Balanced) x 1pair; 12V TRIGER Input(1/8”(3.5mm) Jack)

PRODUCT DIMENSIONS -

(W X H X D) 17.1” (435mm) x 5.3” (135mm) x 13.6” (345mm)

PRODUCT WEIGHT - 13.5 kg

PACKAGE DIMENSIONS -

(W X H X D) 21.3” (542mm) x 9.3” (236mm) x 17.4” (441mm)

POWER CONSUMPTION - 445w, 51w(idle), Less than 0.3w(Standby)
