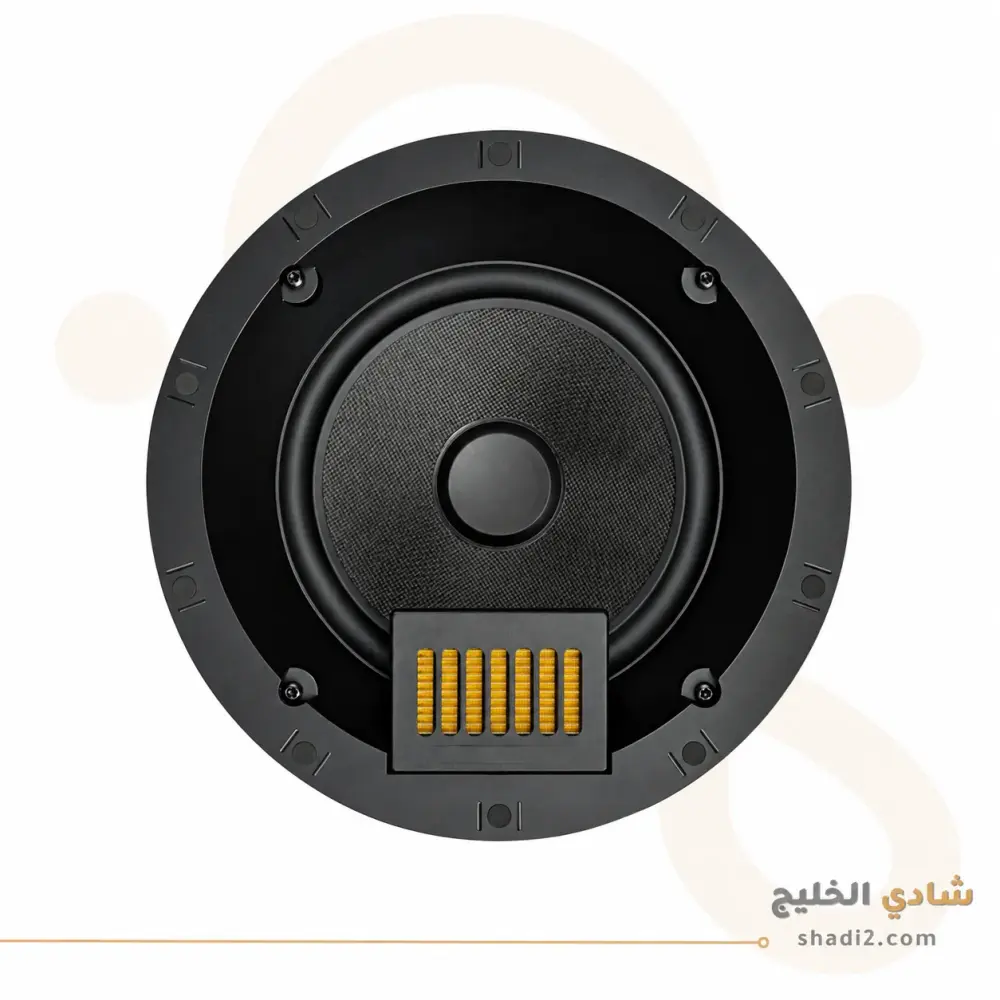

Martin Logan Motion XTC8 In Ceiling Speaker (Single)

Martin Logan Motion XTC8 In-Ceiling Speaker (Single): Reference-Level Performance, Invisible Design

Experience the pinnacle of in-ceiling audio with the Martin Logan Motion XTC8 In-Ceiling Speaker. Representing the highest tier of Martin Logan's custom installation offerings, the XTC8 delivers an unparalleled sonic experience, rivaling the performance of high-end traditional cabinet speakers.¹ It features Martin Logan's largest and most advanced Folded Motion® XT Tweeter (FMT XT) paired with a premium 8-inch woven Kevlar woofer.² This speaker is the ultimate choice for discerning audiophiles building a high-performance whole-house music system or a premium home theater where exceptional clarity, detail, and controlled dispersion are paramount.³

Key Specifications

• Speaker Type: 2-Way In-Ceiling Speaker (Single)
• High-Frequency Driver: 1.27" x 2.4" (3.22cm x 6.09cm) Folded Motion® XT Tweeter (FMT XT)⁴
• Radiating Surface: 40% larger than standard FMT, equivalent to a much larger dome tweeter.⁵
• Controlled Dispersion: 80° x 30° for optimized sound projection.⁶
• Low-Frequency Driver: 8" (20.32cm) Black Woven Kevlar Cone with Nomex backer.⁷
• Frequency Response: 51–25,000 Hz ±3dB⁸
• Nominal Impedance: 4 Ohms (Compatible with 8 Ohms rated amplifiers)⁹
• Sensitivity (2.83V/1 meter): 91 dB¹⁰
• Recommended Amplifier Power: 50–300 Watts¹¹
• Max Power Handling: 150 Watts (RMS), 300 Watts (Peak)
• Crossover Frequency: 2,270 Hz (or 2,000 Hz, sources vary slightly, confirming 2,270Hz from primary MartinLogan source)¹²
• Mounting Depth: 5.3 inches (13.46 cm)
• Required Cut-out Diameter: 9.25 inches (23.5 cm)
• Overall Dimensions (with grille): 10.35 inches (26.3 cm) diameter x 5.3 inches (13.46 cm) depth¹³
• Projection From Wall Surface: 0.33 inches (0.83 cm)¹⁴
• Weight: 7.9 lbs (3.58 kg)¹⁵
• Grille: Ultra-low profile, paintable, micro-perforated grille with no visible bezel.¹⁶ Magnetic attachment.
• Binding Posts: Spring-loaded, accommodates up to 12AWG wire.¹⁷
• Chassis: More substantial chassis for increased rigidity and accurate sound.¹⁸
• Optional Accessories: Retrofittable Back Enclosure (for enhanced sound control) and Square Grille are available separately.¹⁹
• Warranty: 5 Years

Why Choose the Martin Logan Motion XTC8 for Uncompromising Audio?

1. The Pinnacle of Folded Motion® Technology (FMT XT): The XTC8 features Martin Logan's largest and highest-performing FMT XT.²⁰ This advanced tweeter offers a 40% larger radiating surface and a precisely controlled 80° x 30° dispersion.²¹ The result is:

• Unrivaled Realism and Specificity: Experience astounding detail, lightning-fast transient response, and superior accuracy, bringing an unprecedented level of realism to your audio.
• Optimized Room Performance: The controlled dispersion helps direct sound precisely to the listening area, reducing unwanted reflections and acoustic artifacts in even the most challenging rooms.²²
• Vanishingly Low Distortion: Enjoy pure, uncolored sound, even at high volumes.

1. Premium Woven Kevlar Woofer: The 8-inch woven Kevlar cone woofer is designed for exceptional rigidity and lightness, perfectly complementing the speed and articulation of the FMT XT.²³ An added Nomex layer on the back further reduces resonance and ringing, enhancing clarity and realism for impactful bass and a richly textured midrange.²⁴
2. Built for Demanding Systems: With a robust 150W RMS power handling and a sensitivity of 91dB, the XTC8 is engineered for high-performance applications.²⁵ It can handle significant amplifier power, delivering dynamic and immersive soundscapes whether for a thrilling home cinema or a powerful multi-room music system.
3. Audiophile-Grade Vojtko™ Crossover: Each XTC8 incorporates a meticulously handcrafted Vojtko™ crossover network, featuring premium components like polypropylene and polyester capacitors and custom-wound inductors.²⁶ This precision-tuned network ensures seamless integration between drivers, preserving every microscopic sonic nuance and handling the full dynamics of any source for vanishingly low distortion.²⁷
4. Stealthy, Luxurious Integration: The XTC8 is designed to disappear. Its ultra-low profile, paintable, micro-perforated magnetic grille with no visible bezel allows for near-invisible integration into any ceiling.²⁸ This means you get breathtaking sound without compromising your interior design.
5. Enhanced Structural Rigidity: Unlike lesser in-ceiling speakers, the XTC8 features a more substantial chassis.²⁹ This increased rigidity further reduces unwanted vibrations and ensures a more accurate sound reproduction, akin to a high-quality traditional speaker cabinet.
6. Ultimate Versatility: Whether you're configuring a state-of-the-art home theater, designing a high-end whole-house audio system, or seeking superior background music in a premium commercial space, the Motion XTC8 offers the performance and control needed to create truly unforgettable audio experiences.

Top Quotes from Reviews

• "For true next-level performance, the XTC8 features our largest and highest performing FMT XT and a woven Kevlar woofer.³⁰ These features make a noticeable improvement to the sound and help reduce unwanted room acoustic artifacts."
• "The Martin Logan Motion XT CI series takes performance to the next level. The Folded Motion XT tweeter gives each model even more clarity, output, and efficiency."
• "With a more controlled 80° x 30° dispersion, the FMT XT is a powerful tool that delivers unheard levels of realism from a CI speaker in even the most acoustically challenging rooms."

Elevate your audio to a new dimension of realism and clarity. Purchase your Martin Logan Motion XTC8 In-Ceiling Speaker today from Shadi2.com!
