Martin Logan Motion XTC8 In Ceiling Speaker (Single)

Martin Logan Motion XTC8-HT In-Ceiling Speaker (Single): Precision-Angled Audio for the Ultimate Home Theater

Unleash the full potential of your home theater with the Martin Logan Motion XTC8-HT In-Ceiling Speaker. This specialized "HT" (Home Theater) version of the acclaimed XTC8 is engineered with a fixed-angle mounting of its advanced drivers, precisely directing sound towards your main listening position.² This innovation ensures an incredibly immersive and accurate cinematic experience, making it the ideal choice for front, center, or surround channels in high-performance Dolby Atmos, DTS:X, or traditional surround sound systems. Featuring Martin Logan's largest Folded Motion® XT Tweeter (FMT XT) and a premium 8-inch woven Kevlar woofer, the XTC8-HT delivers reference-level clarity, explosive dynamics, and powerful bass from a discreet, in-ceiling design.³

Key Specifications

• Speaker Type: 2-Way In-Ceiling Speaker (Single) with Angled Baffle⁴

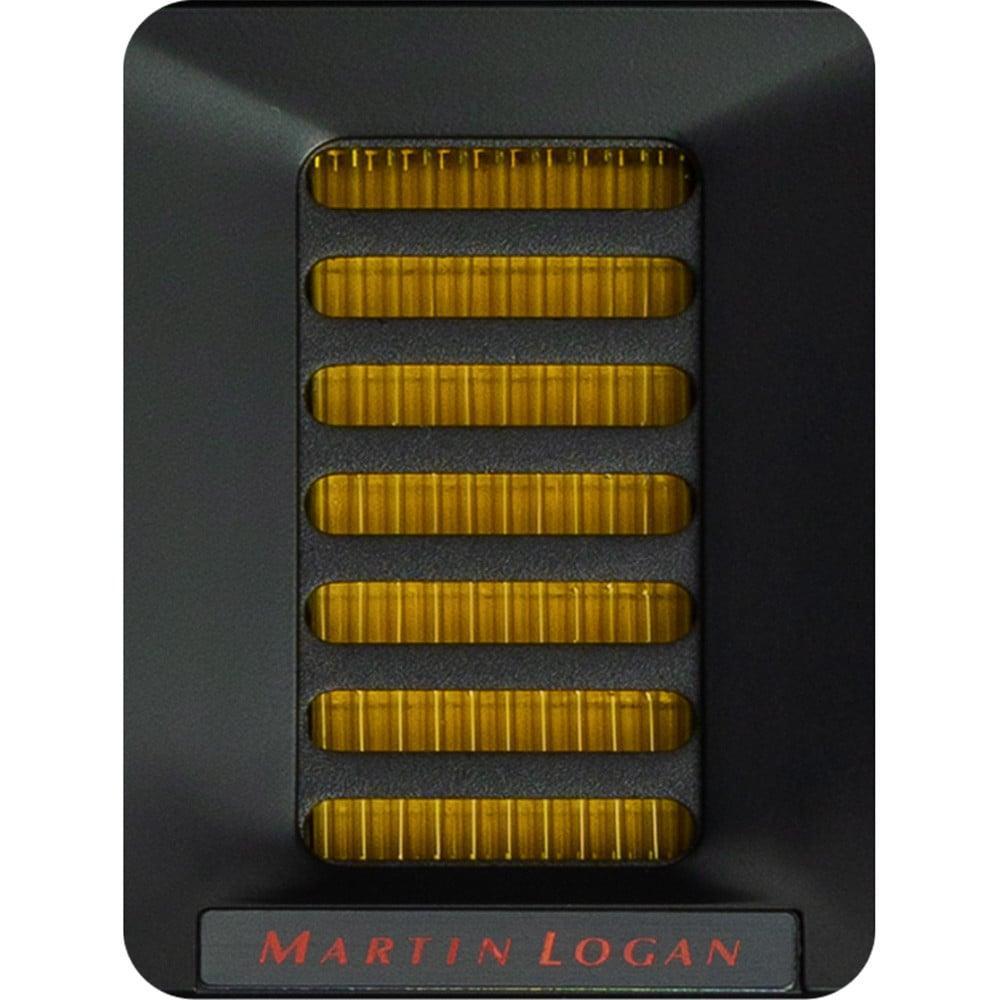

• High-Frequency Driver: 1.27" x 2.4" (3.22cm x 6.09cm) Folded Motion® XT Tweeter (FMT XT)⁵
• Radiating Surface: 40% larger than standard FMT, equivalent to a much larger dome tweeter.
• Controlled Dispersion: Optimized 30° vertical x 80° horizontal for directed sound.⁶
• Low-Frequency Driver: 8" (20.32cm) Black Woven Kevlar Cone with Nomex backer and cast aluminum basket.⁷
• Frequency Response: 51–25,000 Hz ±3dB⁸
• Nominal Impedance: 4 Ohms (Compatible with 8 Ohms rated amplifiers)⁹
• Sensitivity (2.83V/1 meter): 91 dB¹⁰
• Recommended Amplifier Power: 50–300 Watts¹¹
• Max Power Handling: 150 Watts (RMS), 300 Watts (Peak)¹²
• Crossover Frequency: 2,000 Hz¹³
• Mounting Depth: 7.03 inches (17.84 cm)¹⁴
• Required Cut-out Diameter: 11.5 inches (29.1 cm) diameter¹⁵
• Overall Dimensions (with grille): 12.68 inches (32.2 cm) diameter x 7.15 inches (18.14 cm) depth¹⁶
• Projection From Wall Surface: 0.26 inches (0.65 cm)¹⁷
• Weight: 9.3 lbs (4.2 kg)¹⁸

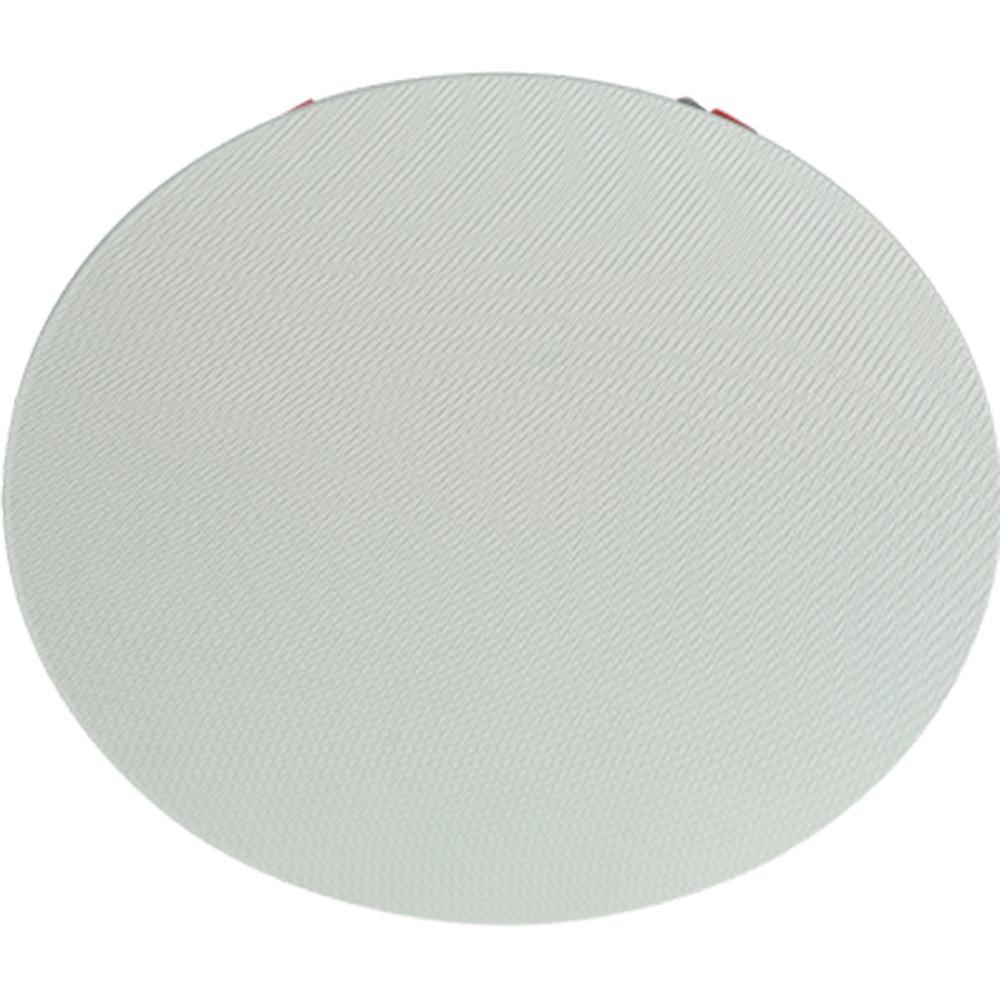

• Grille: Ultra-low profile, paintable, micro-perforated grille with no visible bezel.¹⁹ Magnetic attachment.
• Binding Posts: Spring-loaded, accommodates up to 12AWG wire.²⁰
• Chassis: More substantial, rigid chassis for enhanced accuracy.
• Optional Accessories: Retrofittable Back Enclosure (for enhanced sound control) and Square Grille are available separately.²¹
• Warranty: 5 Years

Why Choose the Martin Logan Motion XTC8-HT for Your Home Theater?

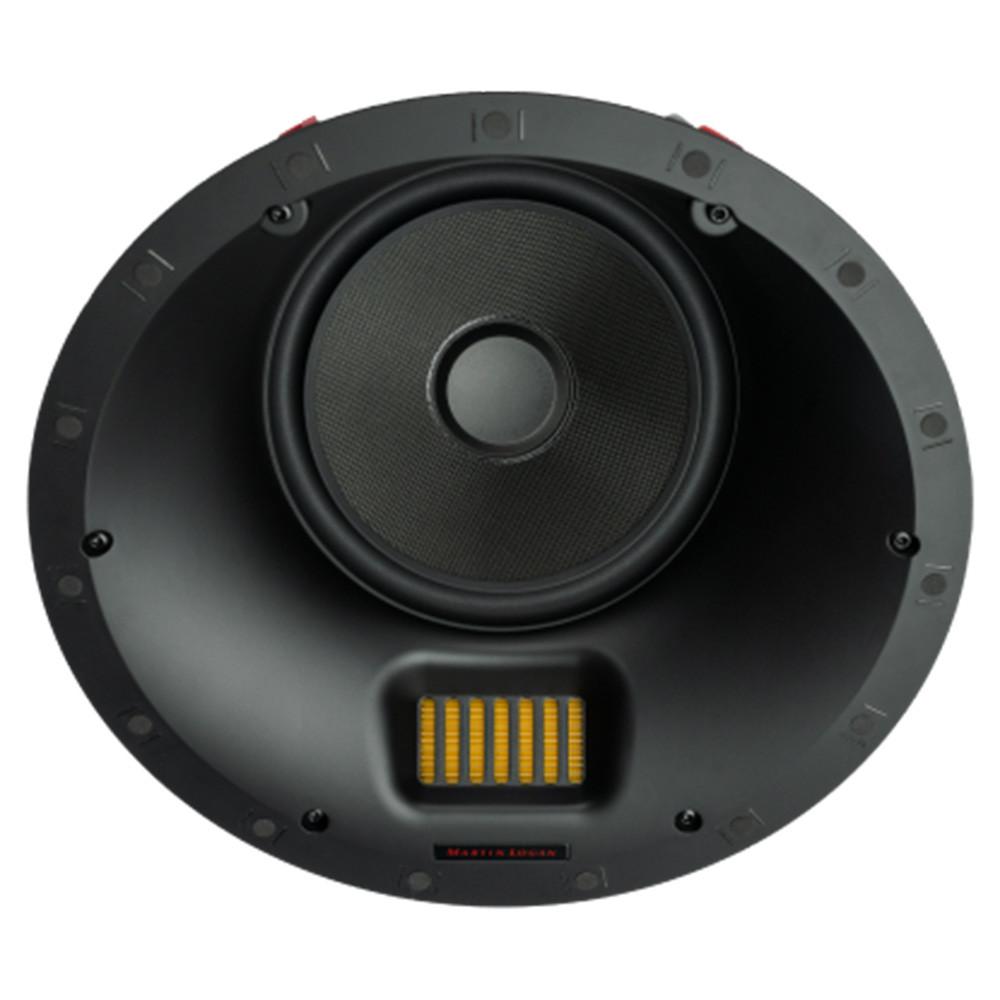

1. Angled Baffle for Directed Sound: The defining feature of the "HT" model is its fixed-angle mounting of both the FMT XT tweeter and Kevlar woofer.²² Unlike standard in-ceiling speakers that fire straight down, the XTC8-HT directs sound towards the listening position.²³ This is critical for home theaters where listeners are typically seated farther away, ensuring:

• Accurate Imaging: Dialogue and effects sound like they're coming directly from the screen, not from overhead.
• Expanded Sweet Spot: Provides a more consistent and immersive listening experience across multiple seating positions.
• Reduced Unwanted Reflections: Minimizes sound bouncing off walls and ceilings, leading to cleaner, more focused audio.²⁴

1. Uncompromising Folded Motion® XT Tweeter (FMT XT): This speaker features Martin Logan's top-tier FMT XT, offering a 40% larger radiating surface than standard FMTs.²⁵ It provides blazing-fast transient response, breathtaking clarity, and ultra-low distortion, making every detail in movie soundtracks and music incredibly vivid.²⁶ Its controlled 30°x80° dispersion further optimizes sound delivery.²⁷
2. Powerful Woven Kevlar Woofer: The robust 8-inch woven Kevlar cone woofer, reinforced with a Nomex backer, delivers deep, articulate bass and a rich, detailed midrange.²⁸ This high-performance driver keeps pace with the speed of the FMT XT, ensuring a dynamic and full-bodied sound that's essential for cinematic impact.²⁹

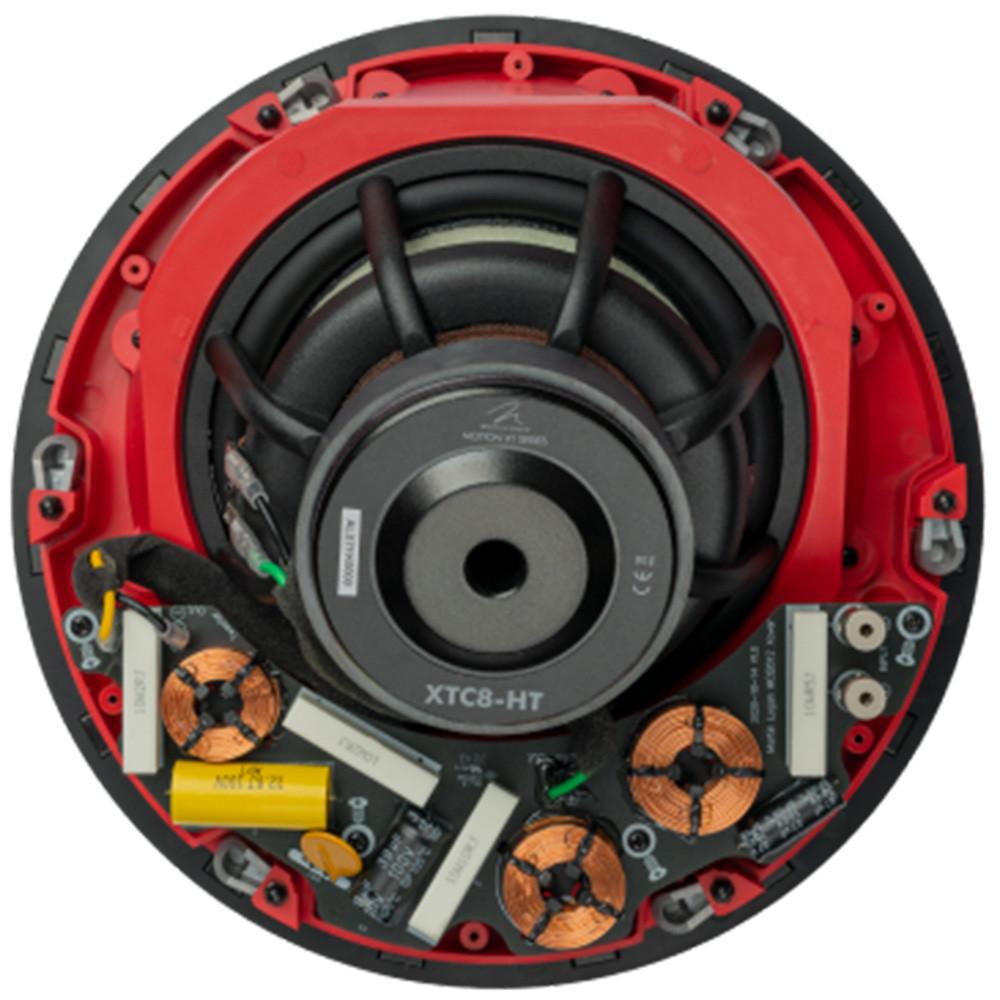

3. Audiophile-Grade Vojtko™ Crossover: Experience flawless sonic integration between the drivers, thanks to a meticulously handcrafted Vojtko™ crossover network.³⁰ Built with premium components, this network preserves the most microscopic sonic nuances and handles full dynamics, resulting in vanishingly low distortion and a truly immersive soundstage.³¹
4. Discreet and Premium Aesthetic: Despite its powerful performance, the XTC8-HT maintains an incredibly discreet profile. The ultra-low profile, paintable, micro-perforated magnetic grille blends seamlessly into your ceiling, allowing your high-performance audio to be heard, not seen.
5. Enhanced Home Theater Performance: The combination of the angled drivers, advanced FMT XT tweeter, and Kevlar woofer makes the XTC8-HT a superior choice for any position in a high-end home theater.³² It integrates perfectly with other Martin Logan Motion XT series speakers, creating a cohesive and compelling surround sound environment.

Top Quotes from Reviews

• "The 'HT' version of the XTC8 is a game-changer for in-ceiling home theater. The angled drivers make a huge difference in directing sound right to your ears."
• "If you're building a serious home theater and need in-ceiling speakers that perform like dedicated mains, the XTC8-HT is a top contender."
• "The Folded Motion XT tweeter delivers astonishing clarity and detail, while the Kevlar woofer provides impactful bass – all from a speaker that vanishes into the ceiling."³³
• "These are amazing speakers... The angled basket aims directly at the sweet listening area. Highly recommend these!"

Elevate your home theater to a new level of audio realism. Purchase your Martin Logan Motion XTC8-HT In-Ceiling Speaker today from Shadi2.com!
