- Product highlights:

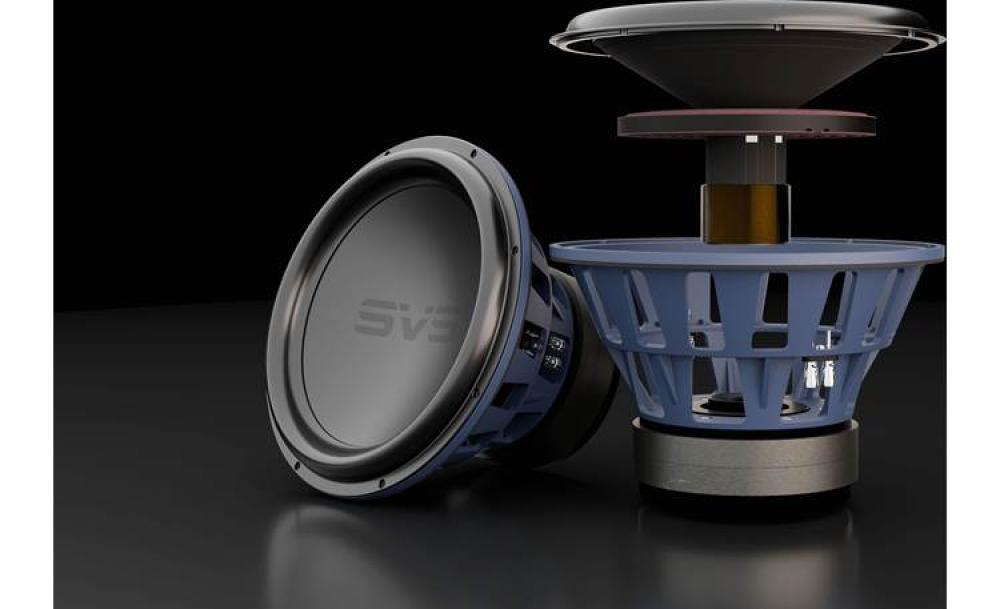

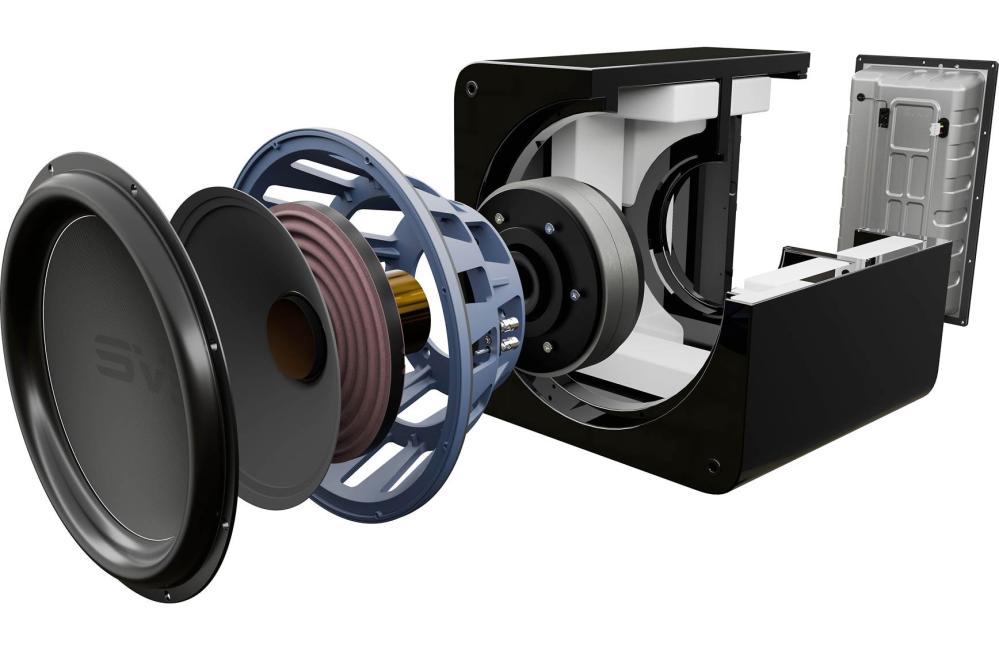

- lightweight, long-throw 15" fiberglass composite cone with powder-coated aluminum basket
- extreme-excursion, long-throw parabolic NB rubber surround
- massive 38.4-lb. toroidal ferrite magnet motor assembly
- dual 3" diameter, edge-wound voice coils with copper-clad aluminum wire
- built-in dual monoblock STA-2000D amplifier with discrete MOSFET output stages
- each amp output powers one voice coil to deliver maximum power and control
- acoustic suspension (sealed) cabinet design for pitch-perfect accuracy
- robust MDF cabinet with rigid internal bracing supports the massive driver and keeps your bass resonance-free

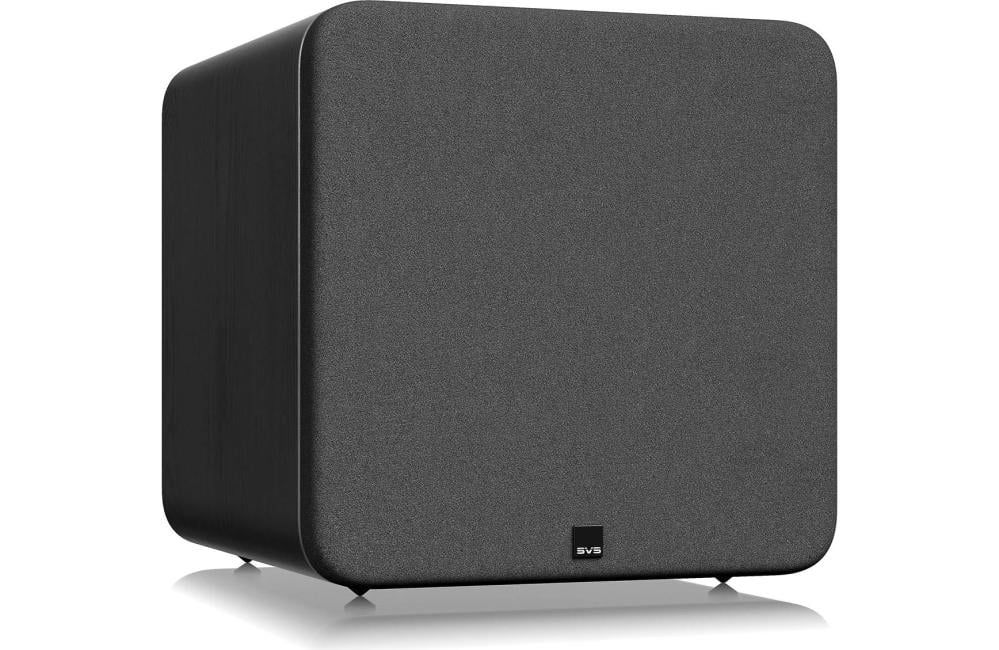

- protective fabric grille with extra-thick, non-resonant ABS frame
- high-resolution 295MHz Analog Devices Audio DSP with 56-bit filtering for ultra-precise audio reproduction
- advanced DACs (Digital-to-Analog Converters) with 120dB signal-to-noise ratio for greater headroom and pristine fidelity
- custom EQ and DSP limiter settings specifically for the 5000 series
- Switch Mode power supply with onboard AC line conditioner
- Power-Factor-Correction (PFC) time aligns voltage to ensure clean, reliable output with your home's AC power supply
- FEA optimized convection cooling system for low heat and improved efficiency without an external heatsink
- frequency response: 17-280 Hz (± 3dB)
- Controls:
- rear-mounted controls can adjust volume, low pass filter, phase, and more
- OLED display bar can be flipped upside down to make it easier to read when leaning over the sub
- use Bluetooth to wirelessly customize your settings with the SVS subwoofer control smart app for iOS®, Android™, and Amazon Fire
- adjust DSP functions, 6-band parametric EQ, custom presets, and more
- use your smartphone's built-in mic or an external microphone to auto-calibrate the sub to your room's acoustics (via future over-the-air firmware update)
- low pass filter: 30 to 200 Hz
- phase: 0 to 180°

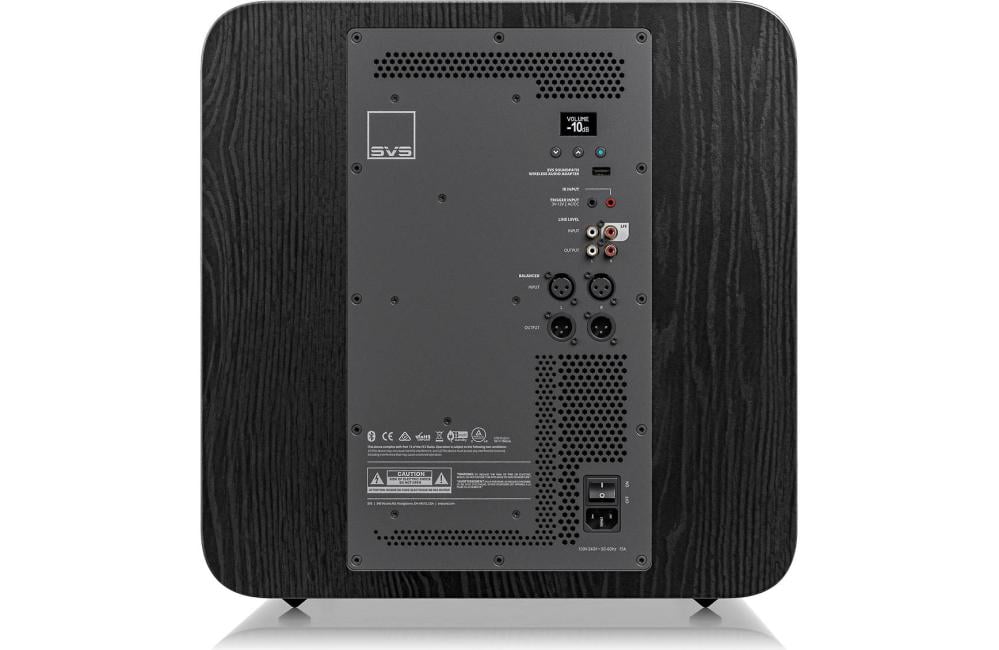

- Connections:
- L/R unbalanced line-level RCA input/output
- right input serves as a mono-RCA LFE input
- L/R balanced line-level XLR input/output
- 3.5mm IR input
- 3.5mm 3V-12V remote trigger input
- connect wirelessly with the optional SVS Soundpath
- General info:
- 6-foot heavy-duty, high-current detachable power cord
- iso-elastomer feet for improved stability and noise reduction
- dimensions: 17-13/16"W x 18-5/16"H x 19-1/2"D (18-3/8"D without grille)
- weight (with grille): 102.1 lbs.
- warranty: 5 years
- 60-day returns
- MFR # SB-5000 R|EVOLUTION - BLACK ASH
- Item # 946SB5KBA
- What's in the box:
- Powered subwoofer
- Grille
- 6' AC power cord
- Remote control
- 4 Elastomer feet
- Owner's Manual
