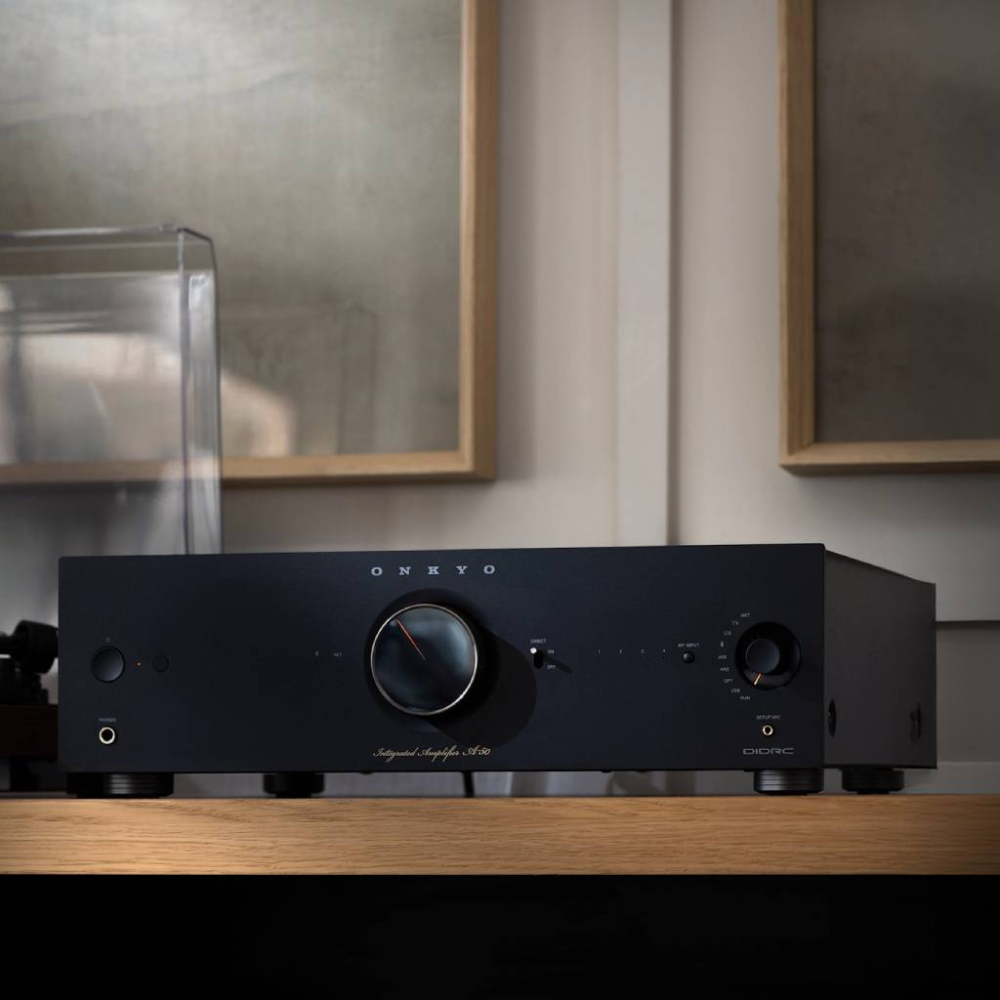

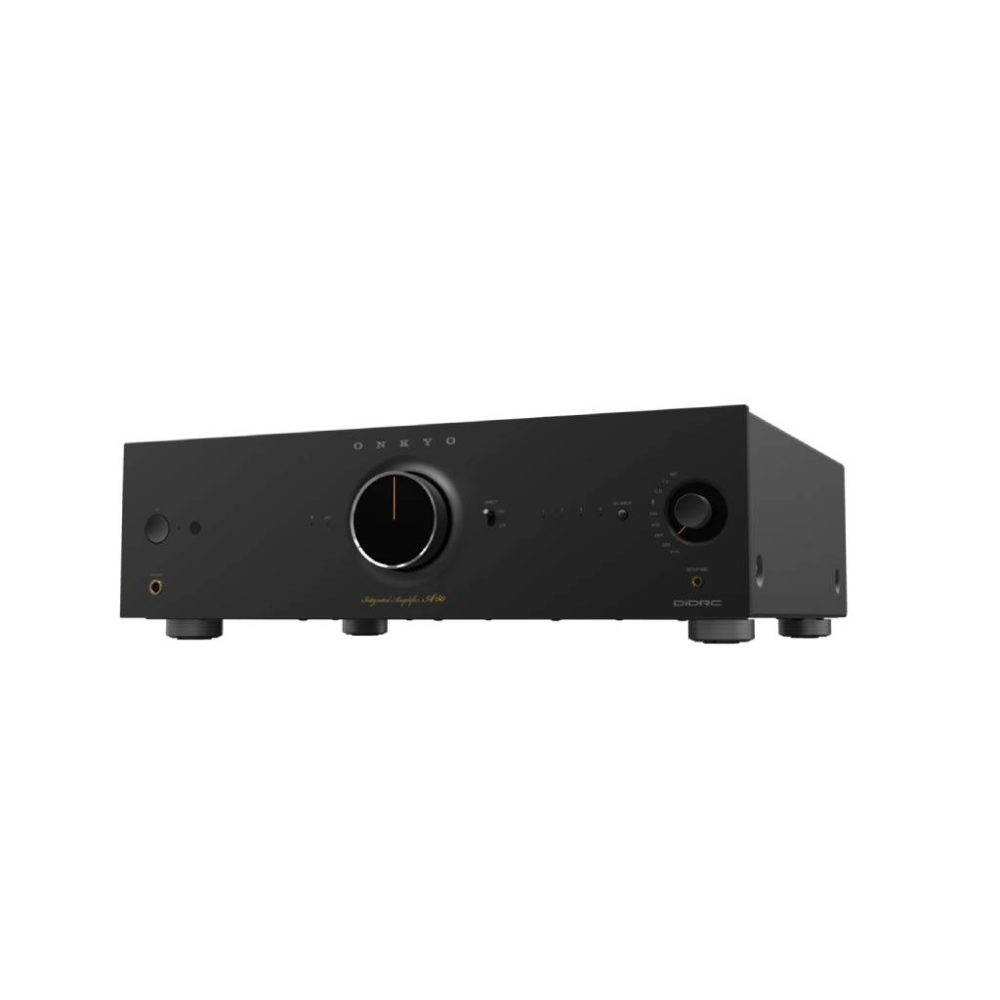

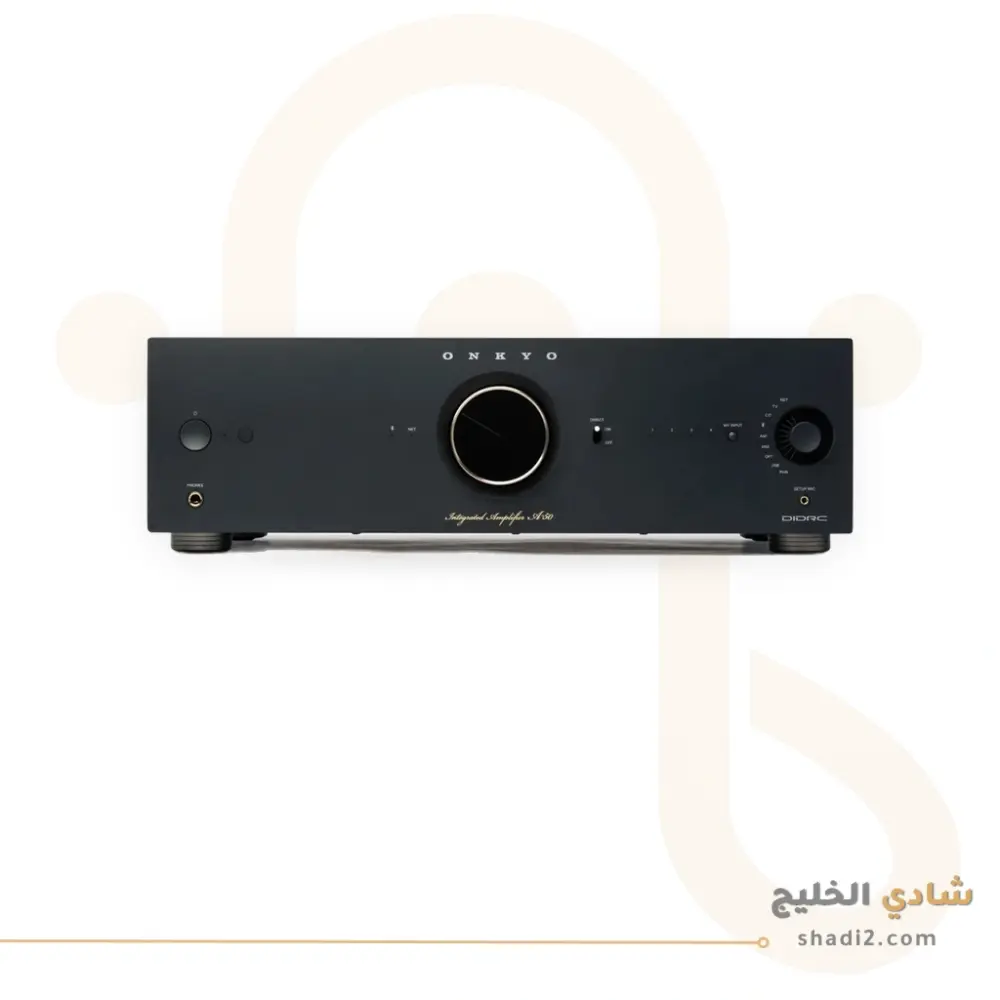

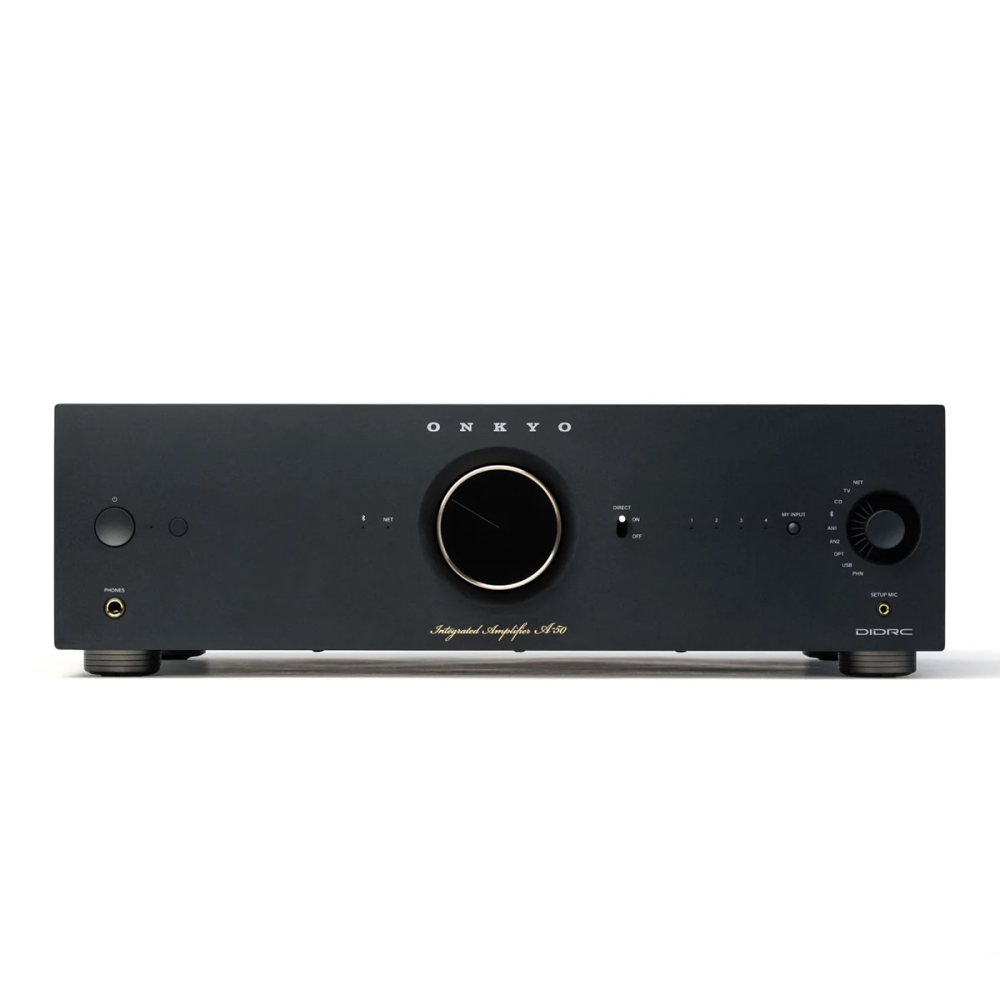

Onkyo A-50 Network Integrated Amplifier

OUTPUT POWER 110w ( 8ohm, 20-20kHz, THD 0.07%, 2ch driven )

180w ( 4ohm, 1kHz, THD 0.7%, 2ch driven )

AMPLIFIER CHANNEL 2 Ch

PRE AMPLIFIER CHANNEL 2 Ch

AMPLIFIER TYPE Class AB

FREQUENCY RESPONSE 5Hz~100kHz (+1/-3dB)

TONE CONTROL

(BASS / TREBLE) 100Hz ±10dB / 10kHz ±10dB

SPEAKER IMPEDANCE 4-16Ω

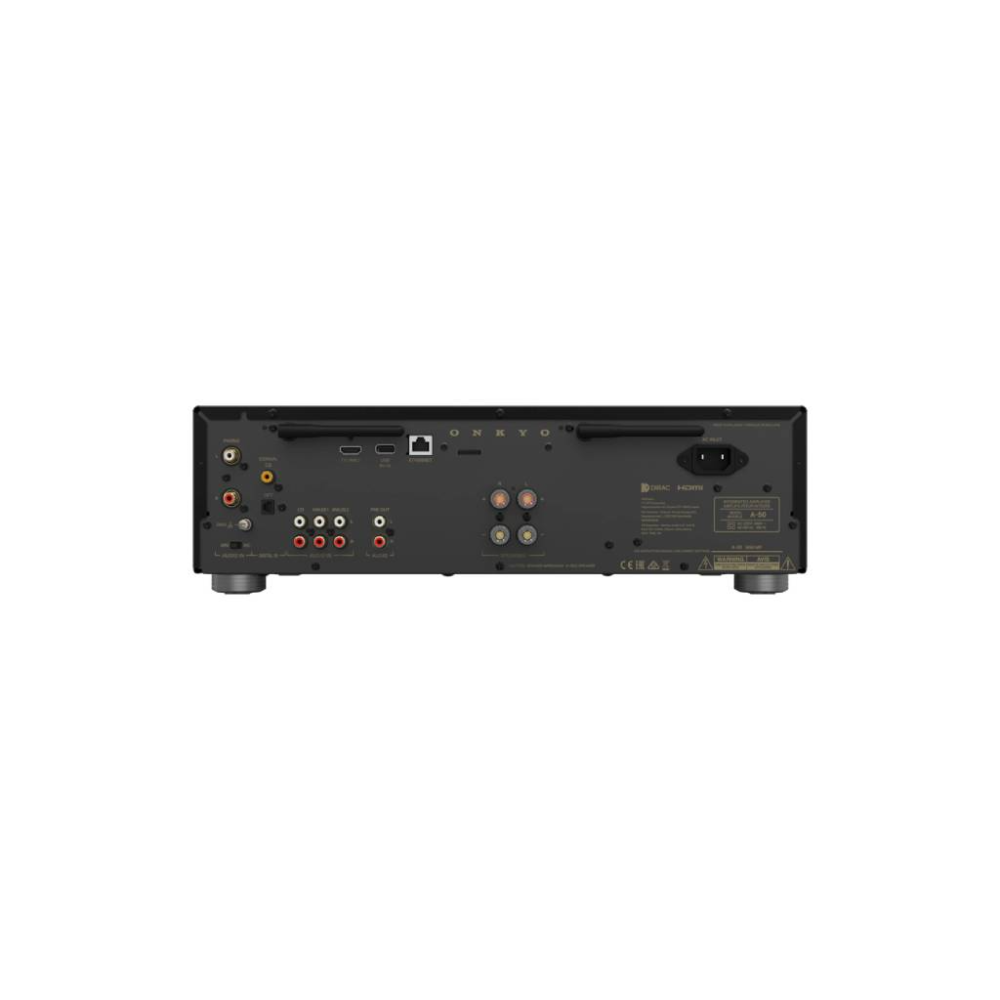

ANALOG AUDIO INPUT RCA (Unbalanced) x 3 Pair

DIGITAL AUDIO INPUT HDMI ARC, COAX, Optical x 2 , USB-A (Storage playback)

PHONO INPUT 1 Pair (MM/MC)

AUDIO PRE OUTPUT RCA(Unbalanced) x 1 Pair

HEADPHONE OUTPUT 1/4”(6.3mm) Jack

SETUP MIC INPUT 1/8”(3.5mm) Jack

NETWORK CONNECTIVITY Wi-Fi, LAN

BLUETOOTH SBC, aptX, aptX HD

ROOM CALIBRATION Dirac Live® Room Correction (Full version is option)

PRODUCT DIMENSIONS

(W X H X D) 17.1” (435mm) x 5.3” (135mm) x 14.0” (355mm)

PRODUCT WEIGHT 13.0 kg

PACKAGE DIMENSIONS

(W X H X D) 21.3” (542mm) x 9.3” (236mm) x 17.4” (441mm)

POWER CONSUMPTION 350w, 47w (idle), Less than 0.3w (Standby)
