Specifications
System
Type: 2,5 way

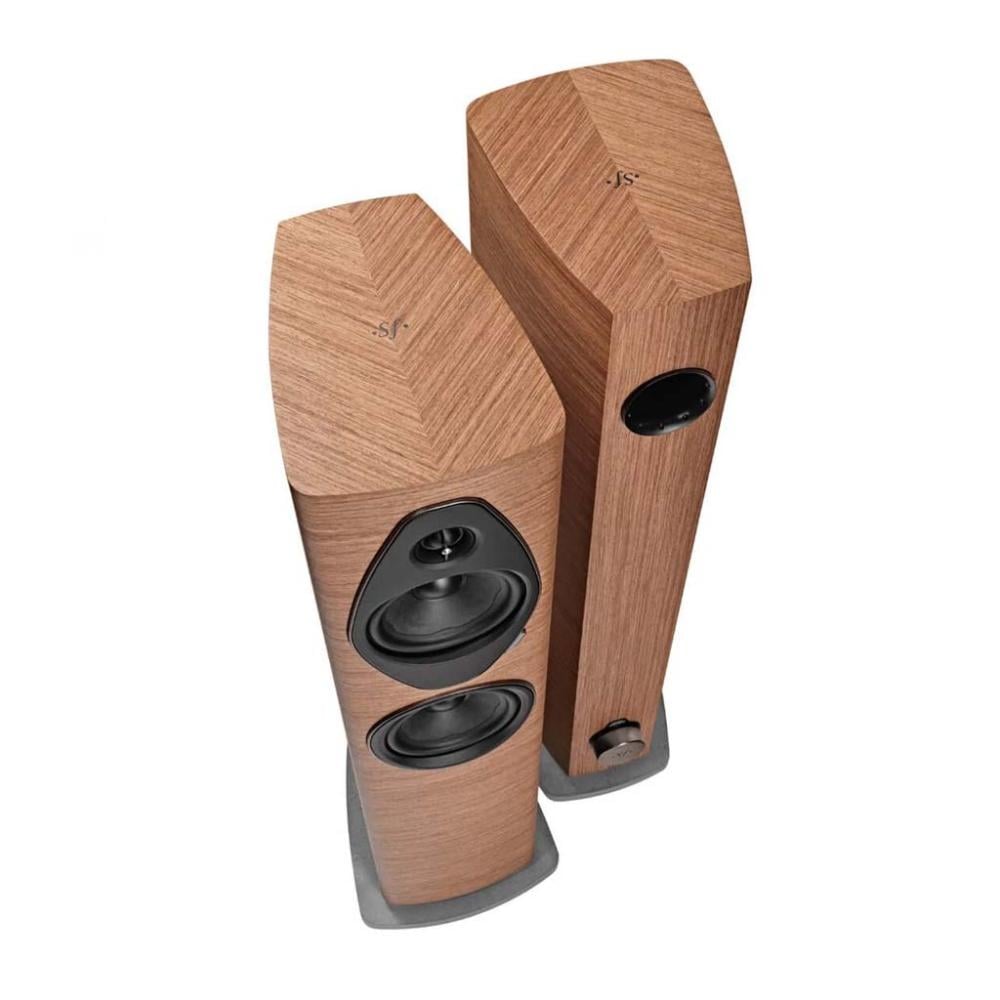

Enclosure: Midwoofer rear vented box
Woofer down vented box
Loudspeakers
Drivers: High-end quality drivers
Tweeter: 1,1" DAD™ Arrow Point extended frequency tweeter, Copper shorting ring
Midwoofer: 1x 6,5" Midwoofer, Aluminum demodulation ring
Woofer: 1x 6,5" woofer, Aluminum demodulation ring
Crossover Points
Frequency: 2700 Hz
Frequency Response
Range: 38 Hz - 40000 Hz
Sensitivity
Rating: 88 dB SPL (2.83 V/1m)
Nominal Impedance
Impedance: 4 Ohm
Recommended Power Amplifier
Power Range: 50 W - 280 W
Dimensions
Product (HxWxD): 1068 x 287 x 350 mm (42.05 x 11.3 x 13.78 in) / each
With Packaging (HxWxD): 1170 x 385 x 460 mm (46.06 x 15.16 x 18.11 in) / each
Weight
Product:
25,80 kg / each
56.88 lb /each
Packaging:
58 kg (127.9 lb)/ two cartons with one speaker each
